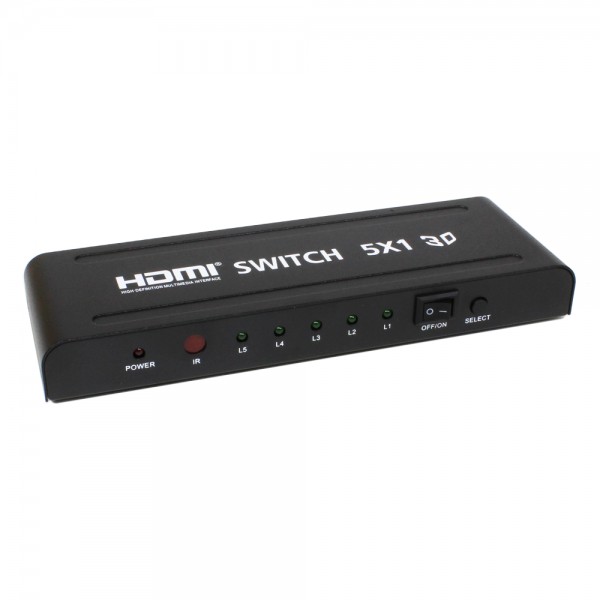

HDMI 5x1 SWITCH

Support video color format

24bit/deep color 30bit,36bit

Support audio format

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maxbandwidth

250MHz

Max baud rate

7.5Gbps

Input/Output TMDS signal

0.5~1.5Volts p-p(TTL)

Input/Output DDC signal

5Volts p-p (TTL)

Input cable distance

≤15m AWG26 HDMI 1.3 standard cable

Output cable distance

≤25m AWG26 HDMI 1.3 standard cable

Max working current

650mA

Power adapter format..Input

AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range

(-15 to +55℃)

Operating Humidity range

5 to 90%RH (No Condensation)

Dimension (L x W x H)

115x61x25 (mm)

Weight

190g
